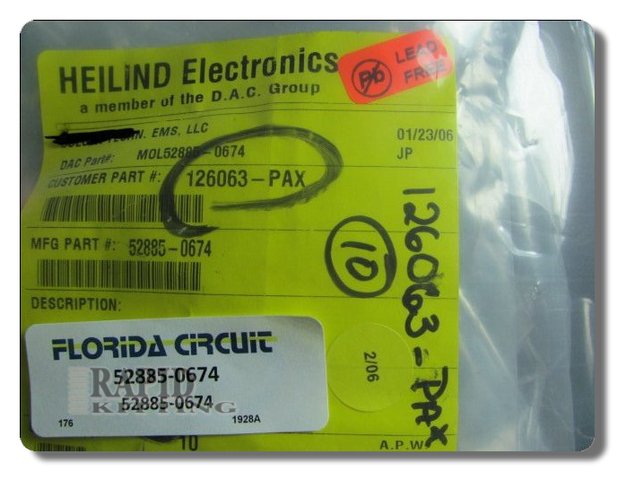

Molex SlimStack 52885-0674 Board-to-Board Connector

The Molex 52885-0674 is a SlimStack™ mezzanine (board-to-board) receptacle connector offering high-density interconnect in a compact form factor. It features 60 contacts across two rows with 0.635 mm pitch. Contacts are made of copper alloy with gold plating for reliable signal integrity. The connector supports a maximum current of 0.5 A and voltage up to 100 V, with a rated operating temperature from –55 °C to +105 °C. The housing is thermoplastic (UL 94V-0), and the device supports stacking heights from 6.0 to 10.0 mm depending on mated configuration. This makes it ideal for compact, low-profile board stacking in consumer electronics or embedded systems. Request a quote for availability and price.
