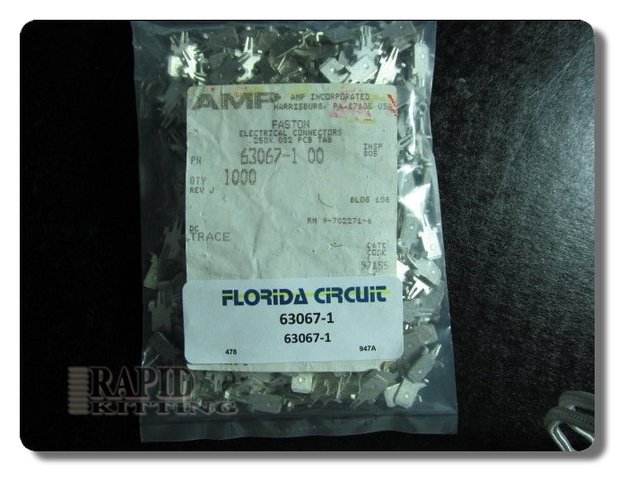

TE 63067-1 0.250″ FASTON Male Tab PCB Terminal

The TE Connectivity 63067-1 is a male PCB terminal in the FASTON 250 series offering a 0.250″ (6.35 mm) tab width and 0.032″ (0.81 mm) thickness. Crafted from brass with tin plating, it mounts via through-hole soldering on a PCB with 2.54 mm (0.100") hole diameter and recommended board thickness of 1.57 mm. It supports significant mechanical and environmental durability, with operating temperature range from −30 °C up to +110 °C. Typical uses are in power and signal distribution using disconnect tabs, control panels, and industrial power systems. Request a quote for confirmed current ratings and material finish.
