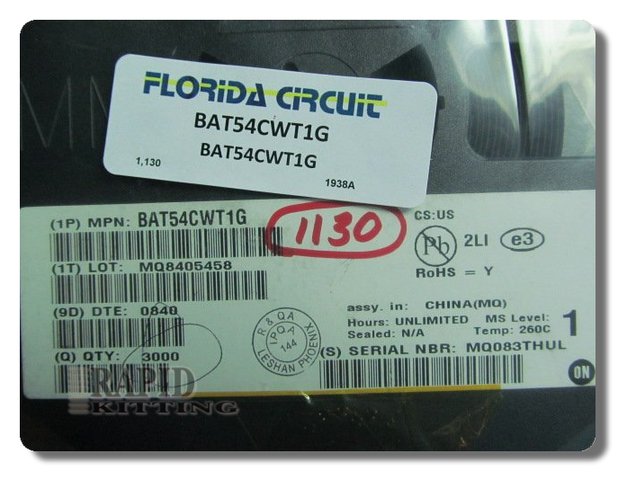

BAT54CWT1G Common Cathode Schottky Array for Protection

BAT54CWT1G is a dual common-cathode Schottky barrier diode array for high-speed switching, circuit protection, and voltage clamping. It is rated for 30 V reverse voltage and 200 mA maximum DC forward current. The device uses a SOT323 surface-mount package with two diode paths sharing a common cathode. Its low forward voltage is intended to reduce conduction loss, while the compact package is suited to handheld and portable applications where space is limited. The device also offers extremely fast switching for responsive electronic functions. Engineers can use the common-cathode topology, package, and electrical limits when matching this component to an existing circuit requirement or board design. Request a quote for BAT54CWT1G.
