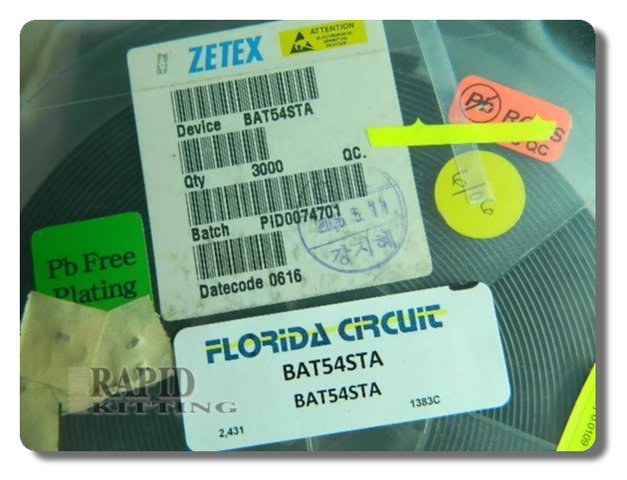

BAT54STA Dual Schottky Diode with Series Connection

BAT54STA is a dual Schottky barrier diode with a series-connected configuration in a SOT23 surface-mount package. The device is rated for 30 V repetitive reverse voltage and 200 mA average rectified output current. It also provides fast switching and low turn-on voltage as specified characteristics. A PN-junction guard ring adds transient and ESD protection at the device level. The two-diode series arrangement is contained in one compact package, giving engineers a defined dual configuration for circuits that call for this topology. BAT54STA uses the SOT23 outline associated with this exact ordering part. Its electrical limits and physical format make the part easy to identify against an existing design requirement. Request a quote for BAT54STA.
