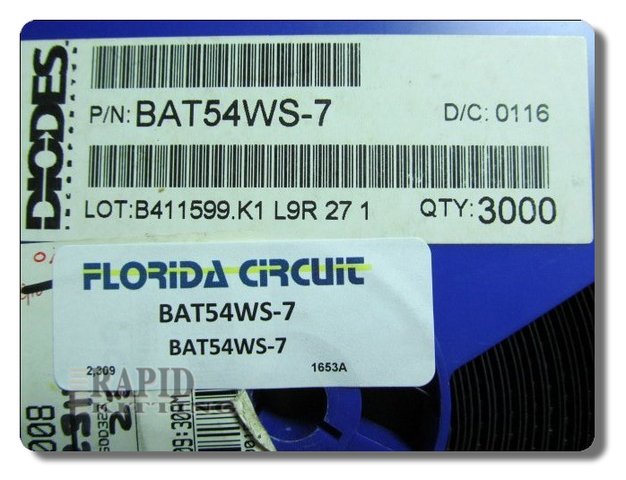

BAT54WS-7 Compact Schottky Diode for Fast Switching

BAT54WS-7 is a surface-mount Schottky barrier diode rated for 30 V repetitive reverse voltage and 100 mA average rectified output current. It uses the compact SOD323 package and a single-diode configuration. The device is specified for reverse-polarity protection, ultra-high-speed switching, and freewheeling functions. Fast switching and an ultra-small package are features of the BAT54WS device. The construction also includes a PN-junction guard ring for transient and ESD protection. Engineers working with BAT54WS-7 can use the 30 V, 100 mA, and SOD323 characteristics when checking circuit and footprint requirements. The part provides a straightforward single Schottky function for compact surface-mount electronic assemblies, modules, and control hardware. Request a quote for BAT54WS-7.
