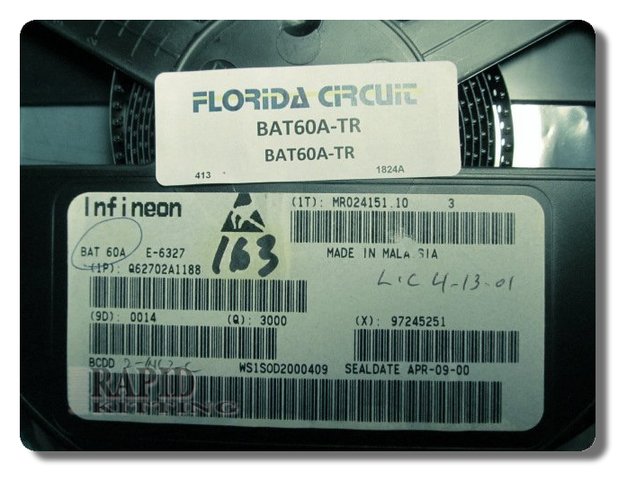

BAT60A-TR Compact Surface Mount Schottky Diode

BAT60A-TR is a compact silicon Schottky diode in a SOD-323 surface-mount package. Its construction is intended for rectifier use where a circuit calls for the BAT60A device type and matching footprint. The small two-terminal case helps designers place a discrete diode in space-conscious board layouts without changing the basic circuit function. Surface-mount construction also supports automated placement and short connections around the device terminals. Engineers should confirm the circuit requirements, package outline, and polarity before using this part in a new assembly or as a replacement. For service work, match the original electrical role and board footprint rather than relying on package appearance alone during installation. Request a quote for BAT60A-TR.
