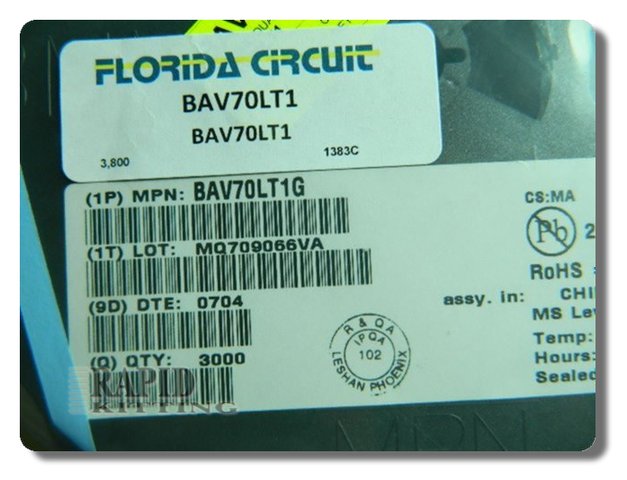

BAV70LT1 Surface Mount Dual Switching Diode

BAV70LT1 is a monolithic dual switching diode with a common-cathode connection in a surface-mount package. The integrated pair gives designers two diode paths that meet at one cathode terminal, simplifying circuits built around that specific topology. Its small package is intended for board-level installation and supports compact routing around the three device terminals. The part is suitable for switching functions when the circuit requires the documented common-cathode arrangement rather than two separate discrete diodes. The monolithic construction keeps the paired function together within a single package. Engineers should match the pinout and package footprint to the existing design before use. Technicians replacing an installed device should also confirm the original circuit connection. Request a quote for BAV70LT1.
