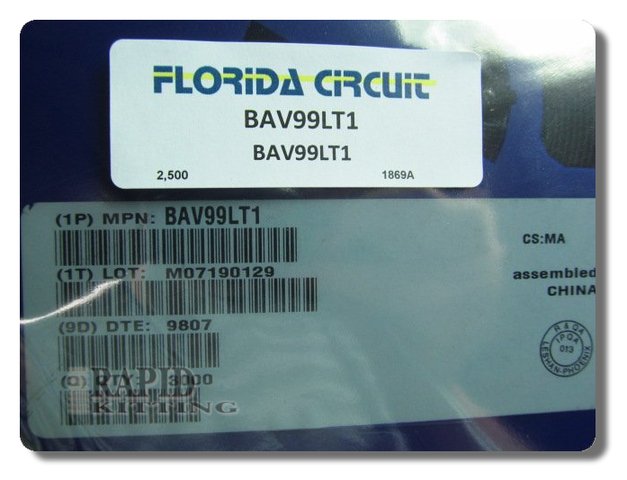

BAV99LT1 Surface Mount Dual Series Diode

BAV99LT1 is a dual series switching diode supplied in a compact surface-mount package. Its internal arrangement connects two diode elements in series, giving designers a ready-made three-terminal structure for circuits that require this configuration. The device is intended for small-signal switching and fits printed circuit layouts where a paired diode function is preferred over two separate components. The surface-mount package also supports automated board assembly and compact routing around the device terminals. Keeping the series pair in one package can simplify placement where the circuit already uses this topology. Use it only where the schematic, pinout, and package footprint match this series-connected diode arrangement. For maintenance work, check the original circuit before substitution. Request a quote for BAV99LT1.
