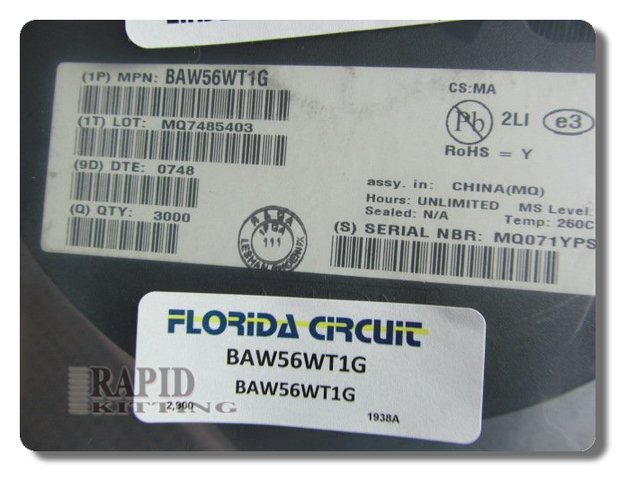

BAW56WT1G Surface Mount Dual Switching Diode

BAW56WT1G is a dual common-anode switching diode in a compact surface-mount package. The shared-anode configuration places two diode elements in one device, which helps designers implement paired switching functions with a simple three-terminal layout. Its small-signal construction is suited to circuits that call for diode switching and a common connection point between the two elements. The surface-mount format supports dense printed circuit layouts and automated assembly. The integrated pair also keeps both diode functions within one defined package and pin arrangement. Engineers can use the device wherever the schematic specifically requires a dual common-anode switching arrangement and the matching package footprint. For service work, confirm the same pin configuration before replacement. Request a quote for BAW56WT1G.
