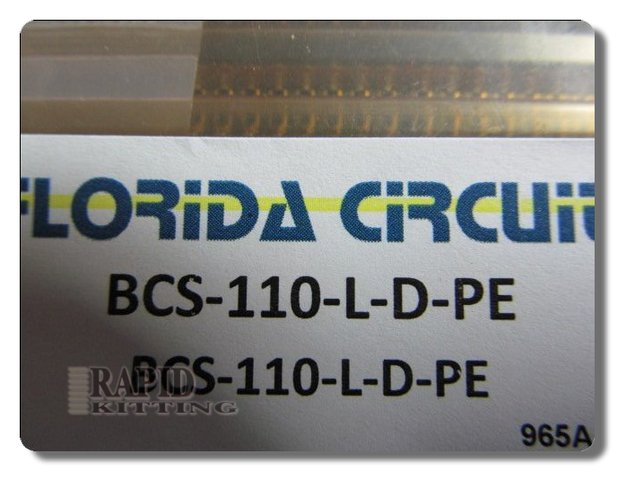

BCS-110-L-D-PE Dual Row Pass Through PCB Receptacle

BCS-110-L-D-PE is a 20-pin, two-row pass-through receptacle with 2.54 mm pitch and through-hole termination. It uses the Tiger Claw dual-wipe contact system and has 10 µin gold on the mating contact with tin on the tail. The pass-through format supports top- and bottom-entry arrangements within the BCS connector system. Its through-hole tails establish the PCB mounting method, while the socket body provides the mating interface for compatible headers. Engineers should confirm the footprint, mating connector, entry direction, and contact orientation for the required board assembly. Check connector placement against the required hole pattern and mating geometry before installation. Keep the receptacle within its specified electrical and environmental operating limits. Request a quote for BCS-110-L-D-PE.
