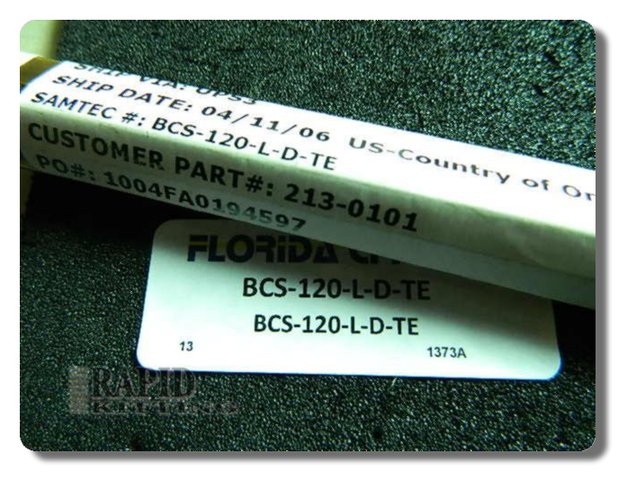

BCS-120-L-D-TE Top Entry Through Hole Receptacle

BCS-120-L-D-TE is a 40-pin, two-row top-entry receptacle with 2.54 mm pitch and through-hole termination. It uses the Tiger Claw dual-wipe contact system and has 10 µin gold on the mating contact with tin on the tail. The top-entry configuration provides a vertical socket interface for compatible mating headers. Its through-hole tails establish the PCB mounting method, while the receptacle body provides the defined connector interface. Engineers should confirm the footprint, mating header, contact orientation, and board dimensions for the required assembly. Check connector placement against the required hole pattern and mating geometry before installation. Keep the receptacle within its specified electrical and environmental operating limits. Request a quote for BCS-120-L-D-TE.
