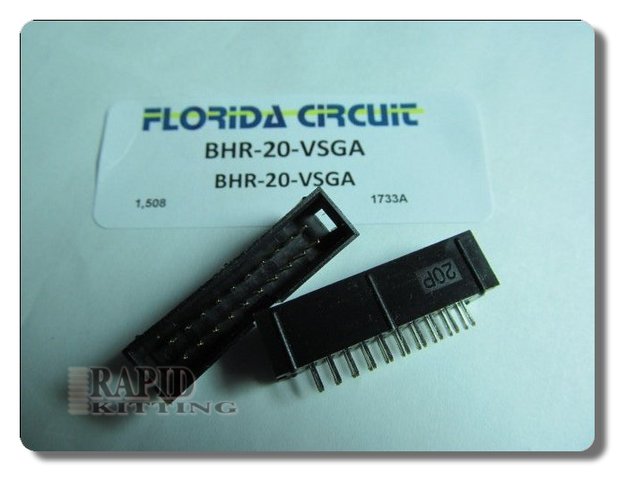

BHR-20-VSGA Shrouded Header for Through Hole Boards

BHR-20-VSGA is a 20-position shrouded board header with a 2.54 mm contact pitch. It uses a dual-row layout, straight orientation, and through-hole solder mounting for a stable PCB connection. The surrounding shroud provides a defined mating area for a compatible connector. Use BHR-20-VSGA when the board design calls for this exact contact count, pitch, mounting style, and orientation. Before assembly, confirm the PCB footprint, mating connector, polarization, and available mechanical clearance. Similar headers can share the same pitch while differing in contact count, orientation, or keying, so match the complete part requirement rather than selecting by appearance. Keep the connector aligned with the approved board layout during installation. Request a quote for BHR-20-VSGA.
