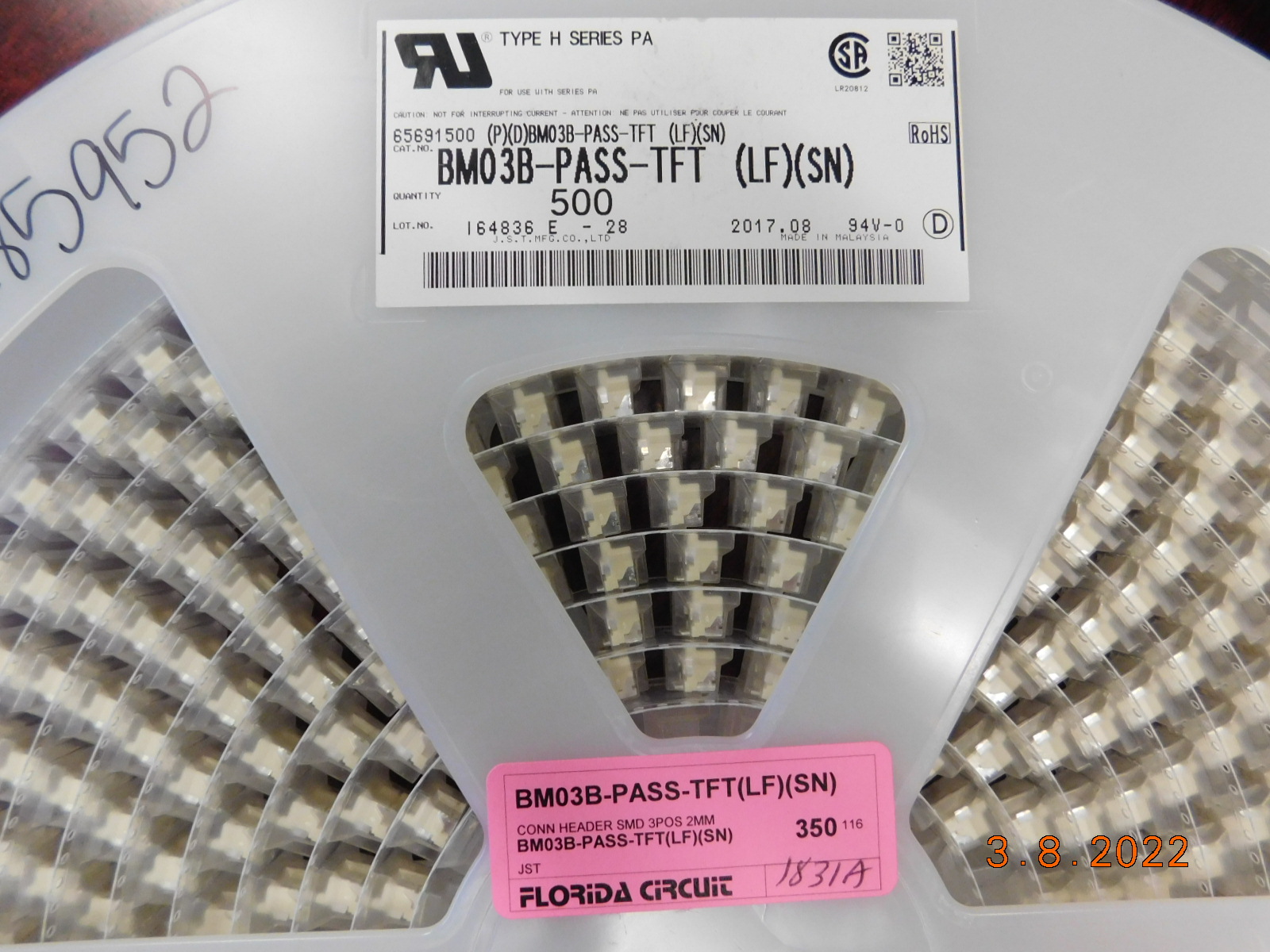

BM03B-PASS-TFT(LF)(SN) Without Boss SMT Header

BM03B-PASS-TFT(LF)(SN) is a three-contact surface-mount header with top-entry mating for wire-to-board connections. It uses one row, a 2.0 mm terminal pitch, and the without-boss housing version. The header posts are copper alloy with tin plating, and the base housing is heat-resistant polyamide. Tin-plated copper-alloy reinforcements are included in the SMT structure. The connector is rated for 3 A and 250 V AC/DC under the specified conditions. Its top-entry orientation provides a straight mating direction above the board, with solder terminals for surface mounting. BM03B-PASS-TFT(LF)(SN) belongs to a connector system designed to mate with the corresponding wire housing and crimp contacts used on the cable side. Request a quote for BM03B-PASS-TFT(LF)(SN).
