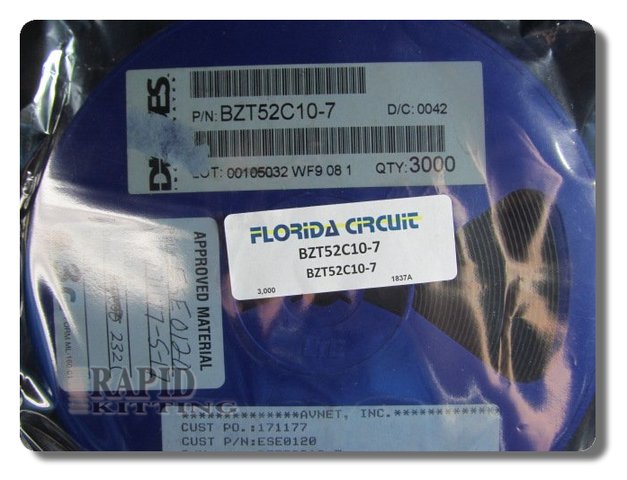

BZT52C10-7 Surface Mount Voltage Reference Diode

BZT52C10-7 is a 10 V Zener diode in an SOD123 surface-mount package. The device has a 500 mW power rating and supports general-purpose voltage regulation and clamping. It can establish a breakdown point on supply rails, interface nodes, and protection networks when used with suitable current limiting. Calculate the series resistance from the full input-voltage range rather than a single nominal condition. Then verify Zener current, load current, and device dissipation at both operating extremes. The planar construction is intended for medium-current applications and automated surface-mount assembly. Before release, for circuits with narrow limits, include voltage tolerance, dynamic impedance, and temperature variation in the design review. Request a quote for BZT52C10-7.
