Compact 6.2 V Regulator for Surface-Mount Boards

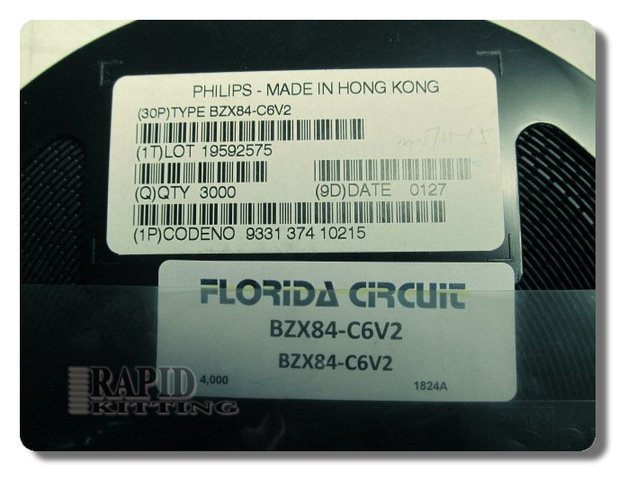

BZX84-C6V2 covers a working voltage right in the middle of common reference and protection ranges. It uses the SOT23 (TO-236AB) plastic package with three leads and is built for boards where space runs tight. The nominal zener voltage lands at 6.2 V, tested at 5 mA, and falls within the ±5% tolerance band of the C-series. Total power dissipation is rated at 250 mW at 25°C ambient when mounted on a standard FR4 board footprint. Forward voltage stays at or below 0.9 V at 10 mA forward current. The 6.2 V point is a common choice for voltage reference circuits because it sits near the temperature-compensated zone where positive and negative temperature coefficients roughly balance out. Request a quote for BZX84-C6V2.
