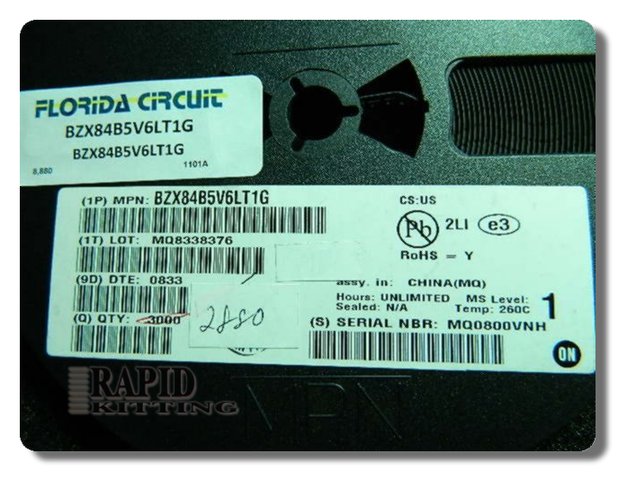

BZX84B5V6LT1G Precise 5.6 V Shunt Regulator

Tolerance matters when a 5.6 V shunt point must stay within a narrow range. BZX84B5V6LT1G combines a nominal 5.6 V Zener voltage with 2 percent tolerance in a SOT-23-3 package. The device has a 250 mW power rating.

This tighter voltage class is useful for reference branches, comparator thresholds, sensor bias circuits, and controlled clamps. Pair the diode with a calculated series resistor so it receives enough current to regulate without exceeding its power limit. Account for load current and supply variation in that calculation.

The compact surface-mount outline also makes it easier to place the regulator close to the circuit it serves, reducing long connections around sensitive nodes. Request a quote for BZX84B5V6LT1G.
