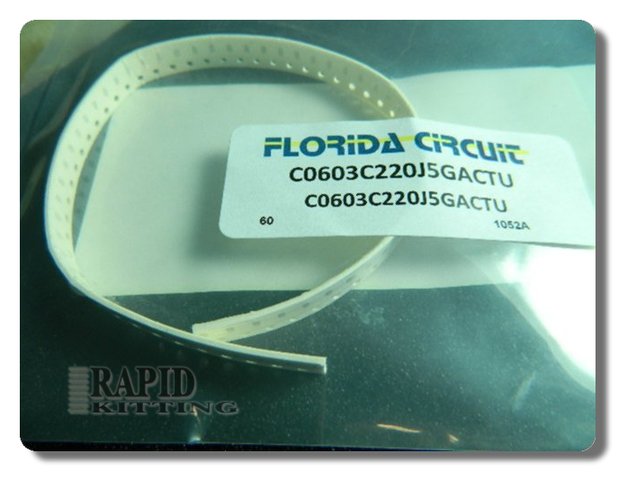

C0603C220J5GACTU Low Loss 50 V Chip Capacitor

C0603C220J5GACTU is a 22 pF C0G multilayer ceramic capacitor with a 50 VDC rating. Its ±5% tolerance supports controlled capacitance in precision signal paths. The Class I dielectric has a specified temperature coefficient of 30 ppm/°C, 0.1% dissipation factor, and zero aging loss per decade hour. These characteristics make the part suitable for resonant, timing, filtering, and frequency-selection functions. The 0603 package measures 1.6 mm by 0.8 mm and works across −55°C to 125°C. Its tin terminations are intended for surface mount assembly, and the ceramic element is nonpolar. C0603C220J5GACTU combines low capacitance, stable behavior, and a compact footprint for controlled PCB designs. It also provides a familiar case size for automated production lines. Request a quote for C0603C220J5GACTU.
