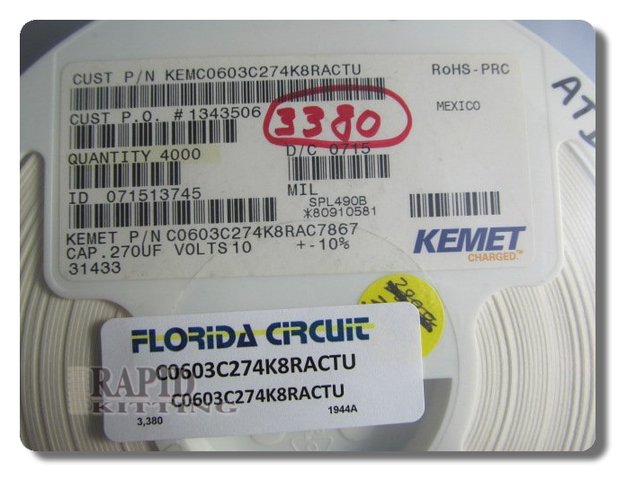

C0603C274K8RACTU Compact 0.27 µF Class II MLCC

C0603C274K8RACTU provides 0.27 µF capacitance in a 0603 surface-mount multilayer ceramic package. It uses an X7R dielectric, carries a ±10% tolerance, and is rated for 10 VDC. The body measures 1.6 mm by 0.8 mm, with a maximum thickness of 0.87 mm. Its -55°C to +125°C operating range supports bypass and decoupling work across a broad temperature span. Because this is a Class II capacitor, effective capacitance can change with temperature, DC bias, and aging. Check those effects against the circuit’s minimum capacitance requirement rather than relying only on the nominal value. Confirm the PCB footprint and voltage margin before installation. Tin terminations provide a familiar soldering interface for automated surface-mount production. Request a quote for C0603C274K8RACTU.
