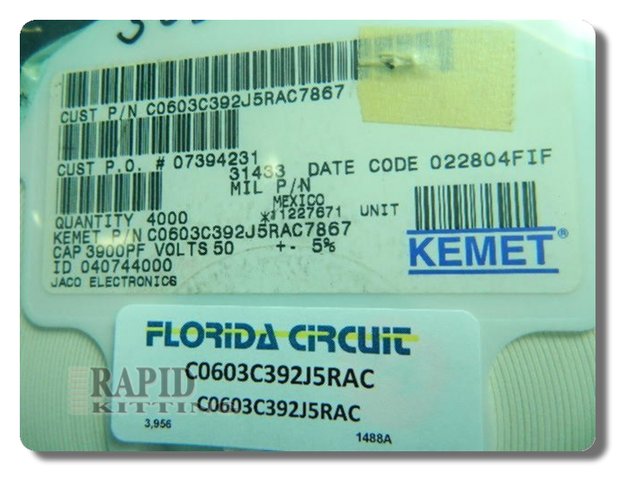

C0603C392J5RAC Tight Tolerance 3900 pF MLCC

C0603C392J5RAC is a 3,900 pF X7R multilayer ceramic capacitor rated at 50 VDC with a ±5% tolerance. The component uses a 0603 case measuring 1.6 mm by 0.8 mm and has a specified thickness of 0.8 mm ±0.07 mm. Its Class II dielectric operates from -55°C to +125°C, with capacitance change defined by the X7R temperature characteristic. The tighter tolerance distinguishes this part from common ±10% options used in similar bypass and decoupling positions. Evaluate DC bias, temperature, and aging effects when checking effective capacitance in the circuit. Match the footprint and complete electrical requirements before assembly. Its tin terminations support standard reflow assembly on compatible printed circuit boards. Request a quote for C0603C392J5RAC.
