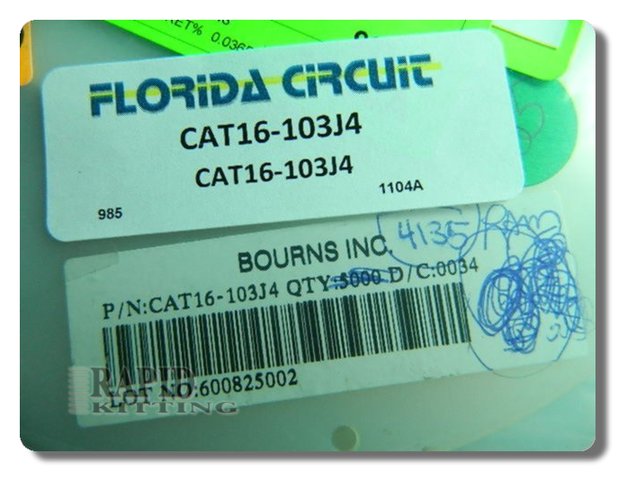

CAT16-103J4 10k Ohm Chip Resistors

The CAT16-103J4 provides four discrete 10k Ohm resistors arranged systematically within a unified external package. This 8-pin chip array features a standard 1206 physical footprint equipped with easily solderable concave termination points. Each embedded resistor element carries a 5% tolerance rating and safely supports up to 62.5 milliwatts of continuous power. The entire component operates effectively across a wide standard temperature range extending from -55°C through 125°C. Deploying a centralized resistor array dramatically simplifies circuit trace layout by reducing the total individual component counts on the board surface. It provides a highly efficient solution for digital logic buses that require multiple adjacent lines to be tied high or low. Request a quote for the CAT16-103J4.
