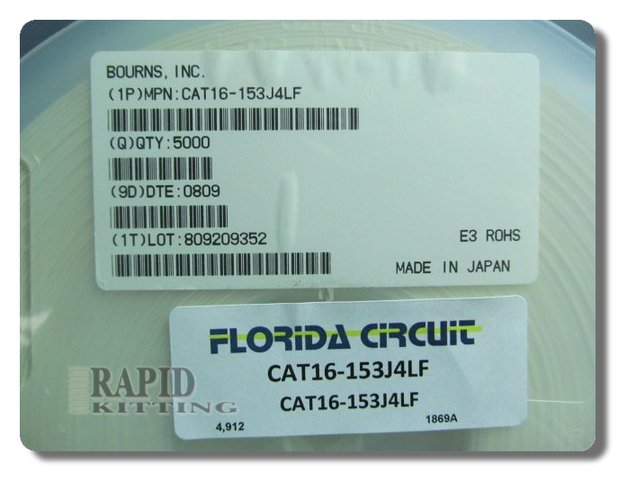

CAT16-153J4LF Isolated Resistor Network

Reduce component clutter on dense logic boards by integrating the CAT16-153J4LF resistor array. This unit actively replaces four separate passive devices by combining them into one efficiently designed surface-mount housing. Each of the four internal elements remains electrically isolated to support distinct signal paths without unwanted cross-interference. The device offers a consistent 5% tolerance margin and manages a steady power output of 0.0625 W per element at 70°C. Engineers prefer the concave termination style for achieving secure, highly visible solder joints during automated reflow procedures. The hardware maintains strict operational integrity across a broad thermal scale from -55°C to +125°C. It effectively handles signal lines requiring up to 50 V of working voltage and tolerates a maximum overload potential of 100 V. Request a quote for the CAT16-153J4LF.
