Surface Mount Eight Line Common Mode Filter Choke

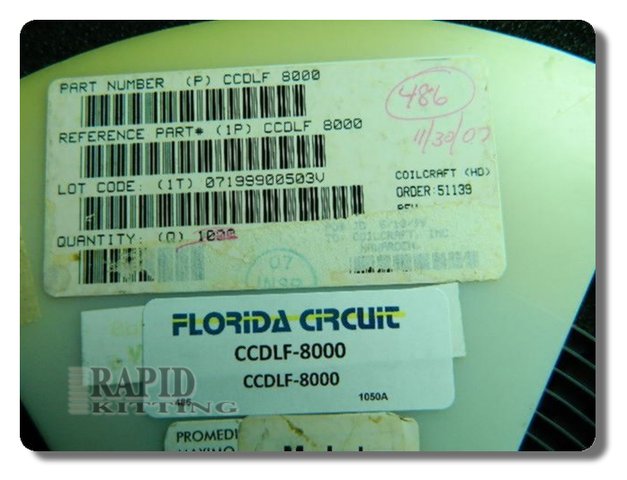

The CCDLF-8000 is an industry-standard data line common mode choke filter designed to suppress electromagnetic interference across eight individual signal traces simultaneously. Enclosed in a compact surface mount package measuring 7.75 mm by 7.75 mm by 4.32 mm, this passive component incorporates a high-grade ferrite core architecture. It provides a minimum inductance rating of 5 µH per winding tested at 1 MHz, alongside a maximum direct current resistance parameter of 250 mΩ. The device safely handles an operating current rating up to 100 mA per line while maintaining an insulation breakdown threshold of 300 Vrms. Systems technicians deploy the CCDLF-8000 on high-density digital circuit layouts to eliminate broadcast noise within computing interfaces and communication buses. Request a quote for CCDLF-8000.
