Positive Edge Triggered Hex Data Register

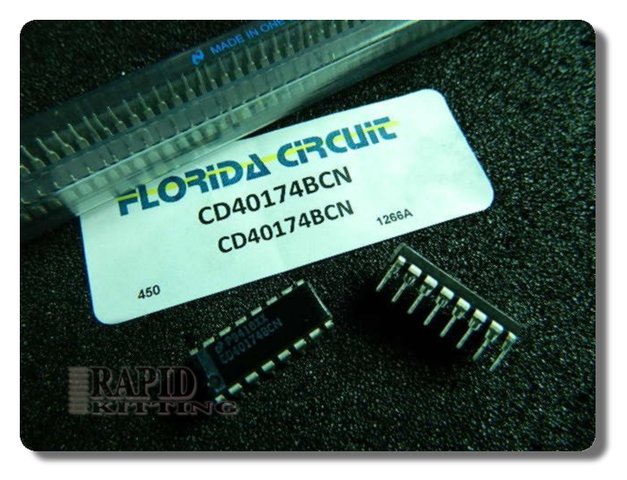

The CD40174BCN incorporates six positive-edge triggered D-type flip-flops sharing a centralized clock bus and a master reset line. Housed in a durable 16-pin plastic DIP, this CMOS device updates its binary outputs instantly as the clock transitions from low to high. Applying a low-level logic pulse to the clear terminal forces all six internal channels to a zero state simultaneously, bypassing the current clock state. The CD40174BCN runs efficiently on voltages between 3 V and 15 V, maintaining low power requirements while remaining fully TTL compatible. Technicians select the CD40174BCN to manage high-noise data lines, telemetry systems, and digital data storage buffers. Request a quote for CD40174BCN.
