Low Power Hex D Type Flip Flop Registry

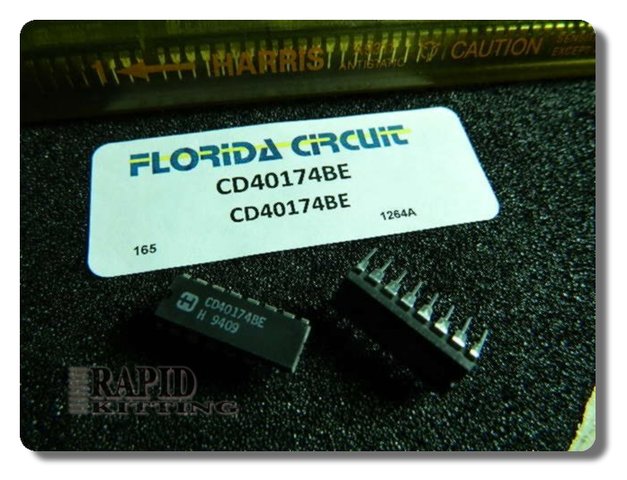

The CD40174BE consists of six separate, identical D-type flip-flops grouped inside a standard 16-lead plastic dual-in-line package for through-hole circuit assembly. The logic array utilizes a single shared clock input alongside a common asynchronous clear line to guarantee synchronized data manipulation. Data residing at the individual input terminals shifts cleanly to the true Q outputs on the positive-going edge of each clock pulse. Operating from a flexible supply voltage system from 3 V to 18 V, the device features symmetrical output drive currents to preserve signal balance. Digital designers implement the CD40174BE as a multi-bit storage register, operational buffer stage, or interface link between mismatched processing units. Request a quote for CD40174BE.
