High Reliability 14 Stage Ripple Carry Binary Counter

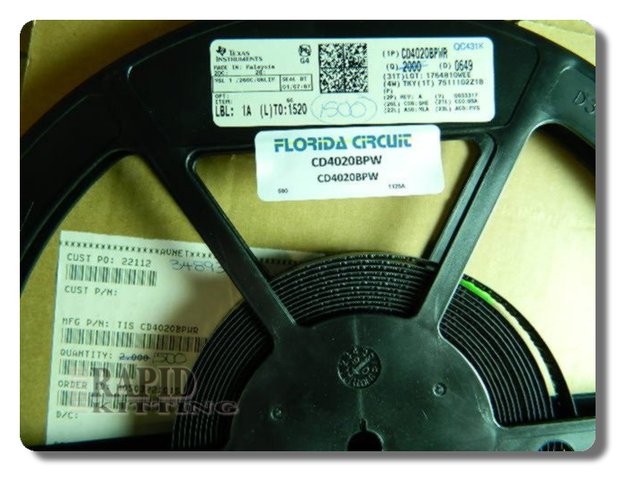

The CD4020BPW is a high-performance 14-stage ripple-carry binary counter designed to optimize timing control in advanced industrial hardware. Housed in a thin 16-pin TSSOP package, this high-density CMOS component advances its internal count incrementally upon the negative-going transition of each incoming clock pulse. It features a fully independent, asynchronous master reset input that immediately forces all internal counter stages back to a logical zero state whenever a high logic signal is applied. Operating with stable efficiency across a wide supply voltage spectrum from 3 V to 18 V, this integrated circuit provides low-power operations and excellent noise immunity. Engineers specify the CD4020BPW to manage precise time delays, frequency division systems, and long-duration counter circuits where board space is critical. Request a quote for CD4020BPW.
