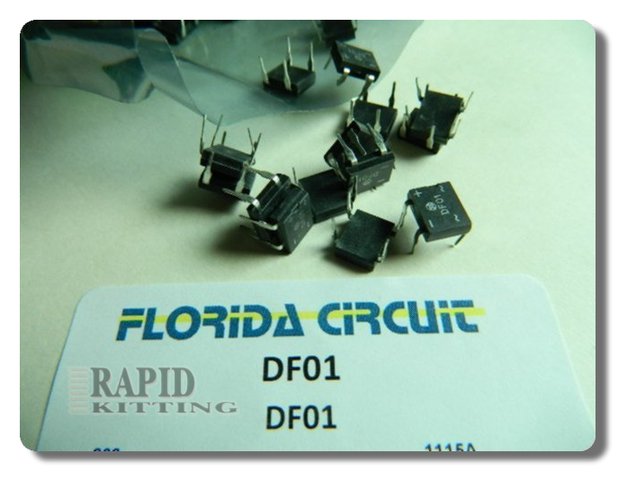

DF01 Through-Hole Bridge Rectifier For Serviceable Power

DF01 is used for low-voltage AC to DC rectification in small supplies where through-hole mounting is preferred. It fits serviceable equipment, simple controllers, and low-power modules where you want a bridge device that is easy to place and replace. DF01 helps keep the rectifier stage compact and easy to route: bring the AC leads in cleanly and keep the DC output path short to the bulk capacitor and regulator stage. In a repair-focused design, DF01 can simplify troubleshooting because the rectifier stage is a single part with a clear function. Keep adequate copper around the leads to manage heat at load, and maintain clear spacing around the AC inputs to reduce noise coupling into nearby signal traces. Use DF01 when your priority is a straightforward rectifier footprint in a board that may see service work. Request a quote for DF01.
