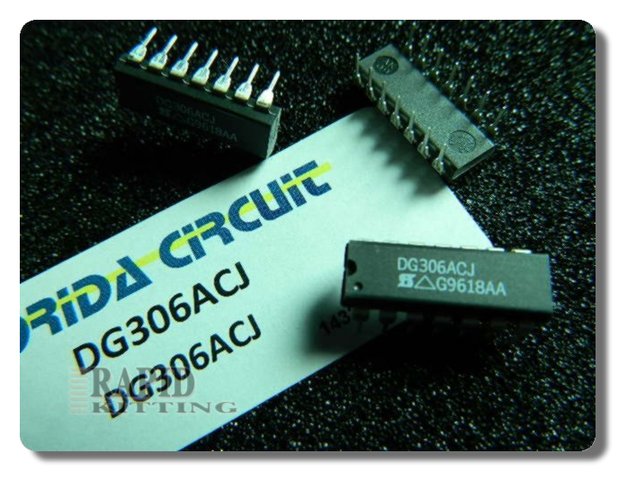

DG306ACJ CMOS Analog Switch For Signal Gating

DG306ACJ is used to gate or route analog signals in communications, instrumentation, and process control. It is part of the DG304A through DG307A CMOS analog switch family intended for fast switching and nearly flat on-resistance behavior. The official data sheet for the family supports a ±15 V input range and describes the series as suitable for applications needing consistent analog switching performance across the signal range. Use DG306ACJ to connect or isolate a measurement node, steer a calibration path, or build a selectable input without mechanical relays. DG306ACJ is also designed for bidirectional signal handling in the on state, which helps in real-world circuits where polarity can vary. Keep the switch close to the analog node to limit stray coupling and noise pickup. Request a quote for DG306ACJ.
