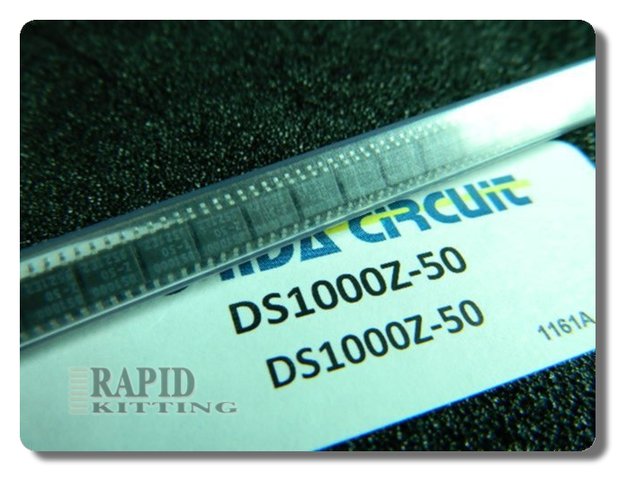

DS1000Z-50 Five-Tap Delay Line For Signal Alignment

DS1000Z-50 is used in digital timing work where you need repeatable, passive-looking delay behavior without code, calibration, or clock synthesis changes. It helps align strobes, compensate for trace mismatch, and adjust timing between logic blocks when the margins are tight. DS1000Z-50 provides multiple taps from a single input, letting you select a delayed version of the same logic transition for different parts of the circuit. That pattern is common in legacy bus timing, glue logic, and systems with mixed-speed devices where small timing offsets are needed across signals. DS1000Z-50 is also useful during bring-up because it lets you validate timing hypotheses with a simple tap change instead of respinning a board. If your design calls for stable, hardware-based delay taps, DS1000Z-50 is a direct option. Request a quote for DS1000Z-50.
