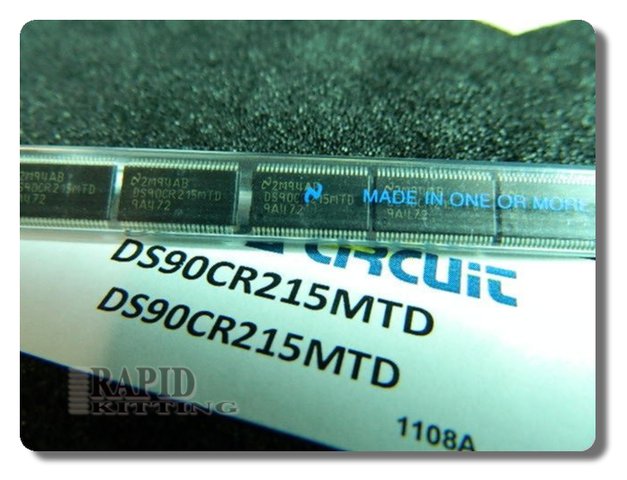

DS90CR215MTD LVDS Channel Link Transmitter for Parallel Data

DS90CR215MTD is designed for systems that need to send wide, fast parallel data across a cable or backplane with better noise immunity than single-ended lines. It converts 21 bits of CMOS/TTL data into three LVDS data streams and includes a transmitted clock for synchronized recovery. The device is specified for a single 3.3V supply and supports channel-link operation up to 66 MHz, which is useful for display, imaging, and high-pin-count interconnect reduction. Use DS90CR215MTD to simplify harnessing and improve signal integrity in electrically noisy enclosures. Follow the recommended LVDS routing and termination practices to keep skew and reflections under control. Request a quote for DS90CR215MTD.
