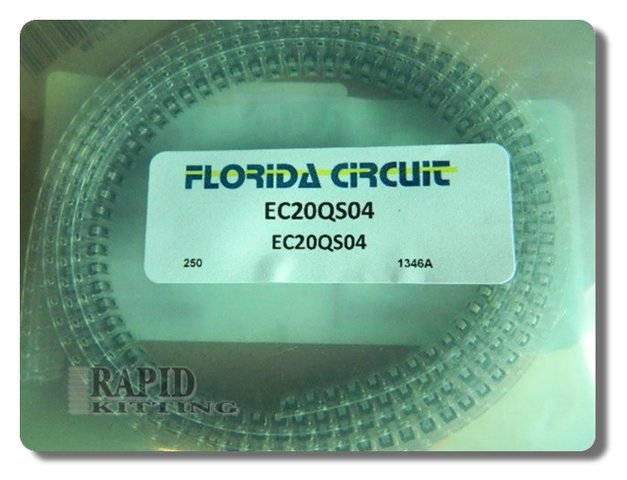

EC20QS04 Schottky Barrier Diode For Power Rectification

Schottky diodes are often chosen in DC/DC converters, OR-ing paths, and freewheeling circuits to reduce conduction loss and improve efficiency. EC20QS04 is used in power paths where fast recovery behavior and low forward drop are valued, especially at higher switching frequencies. It fits well in input protection, secondary rectification, and clamp functions where a standard silicon diode would run hotter or switch slower. EC20QS04 is a surface-mount Schottky barrier diode intended for automated assembly on compact power boards. Because Schottky part numbering and package variants can differ by supplier, confirm the exact electrical ratings and package details for EC20QS04 in the linked references before committing to layout and thermal design. Request a quote for EC20QS04.
