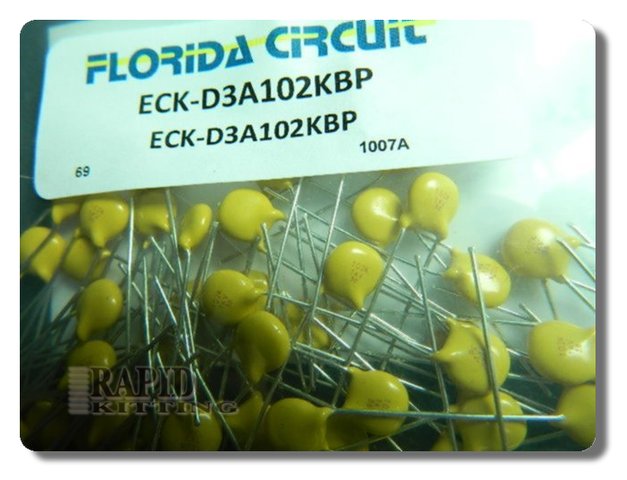

ECK-D3A102KBP High-Voltage Ceramic Disc For HV Filtering

High-voltage nodes need capacitors that can handle electric stress and fast transients without breaking down. ECK-D3A102KBP is a ceramic disc capacitor rated at 1000 pF, ±10% tolerance, and 1000 V (1 kV), which fits HV filtering and snubbing in power conversion, ignition circuits, and test fixtures. The dielectric is Y5P (B), and the radial disc style supports through-hole assembly and simple inspection during QA. Keep creepage and clearance appropriate for the voltage level, and avoid sharp copper features near the pads to reduce field concentration. Place ECK-D3A102KBP close to the source of transients for best suppression. Request a quote for ECK-D3A102KBP.
