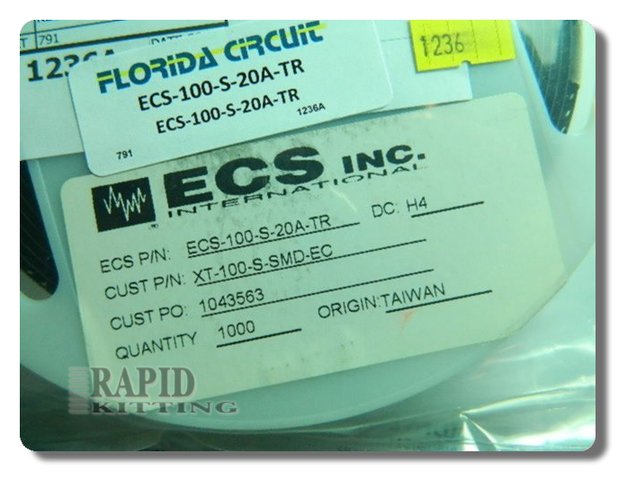

ECS-100-S-20A-TR SMD Crystal For Compact Clock References

ECS-100-S-20A-TR is intended for designs that use a discrete crystal to establish a stable clock reference in a compact surface-mount footprint. This approach is common when you want low power, straightforward BOM control, and the ability to tune the oscillator network based on the controller’s recommended loading. ECS-100-S-20A-TR is typically applied in embedded controllers, interface timing, and general clock generation where a dedicated oscillator can is not required. Keep the oscillator loop tight, route the crystal nodes away from switching regulators and high-speed digital edges, and follow the IC vendor’s guidance for load components and drive strength. Good placement and clean grounding are key for startup margin and low sensitivity to injected noise. Request a quote for ECS-100-S-20A-TR.
