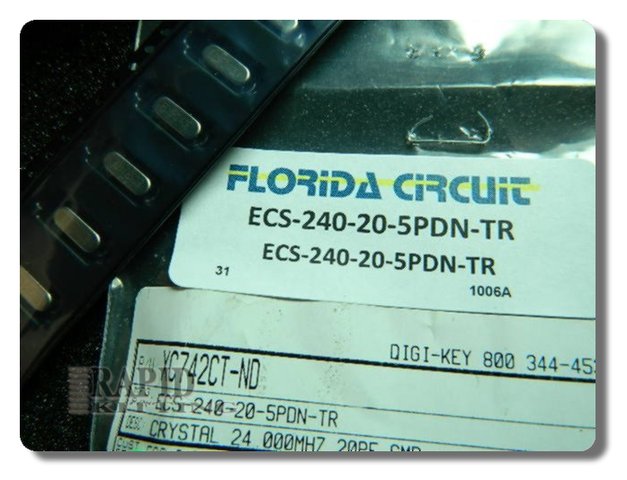

ECS-240-20-5PDN-TR 24 MHz Industrial SMD Crystal For Timing

ECS-240-20-5PDN-TR is designed for clock networks that need a 24 MHz reference in an SMD form factor while maintaining timing across tougher environments. It operates at 24 MHz with a 20 pF load rating, fitting common microcontroller and interface oscillator inputs. ECS-240-20-5PDN-TR is specified with ±30 ppm tolerance and is intended for -40°C to 85°C operation with ±100 ppm stability, which supports timing integrity when temperature swings are part of the design envelope. The listed ESR is 30 Ω, helping startup margin when the oscillator loop is kept tight and the loading network matches the IC guidance. Place it close to the oscillator pins, keep traces short and symmetric, and avoid routing under high dV/dt nodes. Request a quote for ECS-240-20-5PDN-TR.
