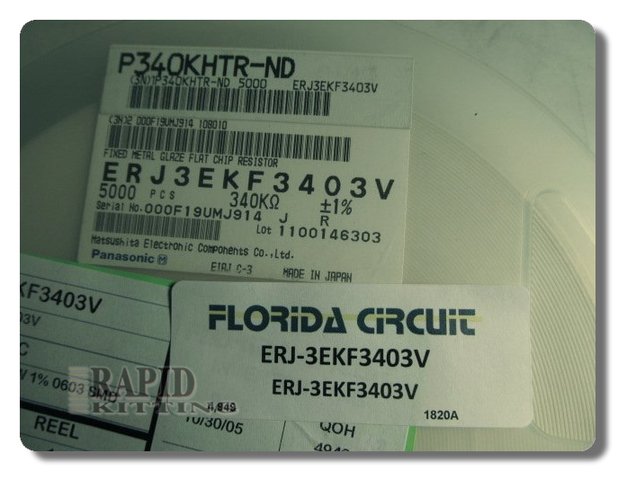

ERJ-3EKF3403V 340 kOhm 0603 Resistor For Bias And Bleed Paths

High-value resistors often sit on sensitive nodes, so consistency matters. ERJ-3EKF3403V supports bias networks, bleed-down paths, and high-impedance sensing where you want low loading with predictable behavior. It is a 340kΩ thick film chip resistor in a 0603 (1608 metric) package, rated at 0.1W (1/10W) with ±1% tolerance. Automotive AEC-Q200 support helps for modules exposed to vibration and temperature cycling. The temperature coefficient is ±100ppm/°C, and it is specified for -55°C to 155°C operation. Mechanical size is 1.60mm x 0.80mm with 0.55mm max height, making it easy to place near ADC inputs and reference nodes. ERJ-3EKF3403V is used to stabilize high-impedance designs without giving up board space. Request a quote for ERJ-3EKF3403V.
