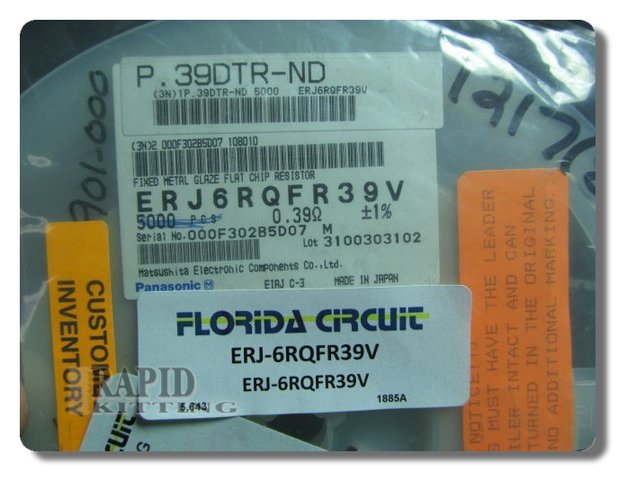

ERJ-6RQFR39V 390 mOhm 0805 Current Sense Chip Resistor

ERJ-6RQFR39V targets shunt measurement points where tolerance control matters but board space is limited to an 0805 footprint. It is specified at 390 mOhms with ±1% tolerance and a 0.125 W (1/8 W) power rating. Automotive AEC-Q200 and a current sense feature note are listed. Temperature coefficient is 0/+250 ppm/°C, with an operating temperature range of -55°C to 155°C. The 0805 (2012 metric) package provides a 2.00 mm x 1.25 mm footprint and 0.70 mm max seated height, using 2 terminations for standard reflow assembly. ERJ-6RQFR39V supports repeatable resistance control across temperature without moving to a larger case size. Request a quote for ERJ-6RQFR39V.
