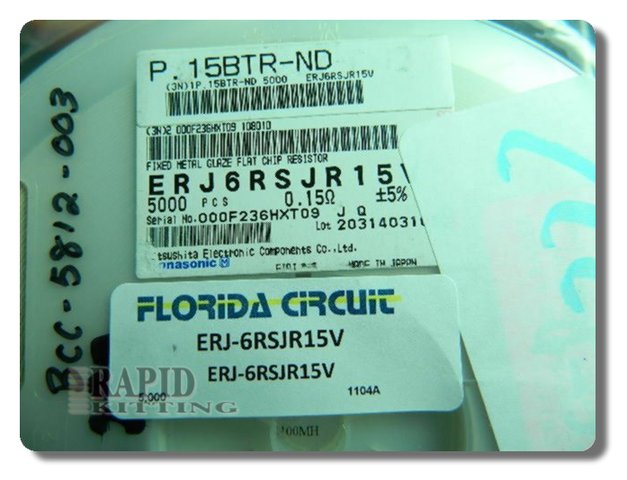

ERJ-6RSJR15V 150 mOhm 0805 Current Sense Chip Resistor

ERJ-6RSJR15V is built for compact shunt measurement paths that need a low-ohmic value in an 0805 outline. It is specified at 150 mOhms with ±5% tolerance and a 0.125 W (1/8 W) power rating. The part is listed with Automotive AEC-Q200 and a current sense feature note. Temperature coefficient is 0/+250 ppm/°C, with an operating temperature range of -55°C to 155°C. Package is 0805 (2012 metric) with a 2.00 mm x 1.25 mm footprint and 0.70 mm max seated height, using 2 terminations for standard reflow assembly. ERJ-6RSJR15V supports controlled drift requirements in small layouts without changing case size. Request a quote for ERJ-6RSJR15V.
