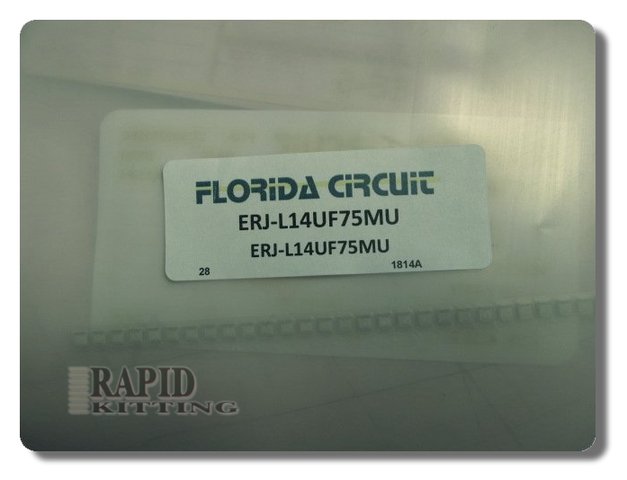

ERJ-L14Uf75MU 75 mOhm 1210 Current Sense Chip Resistor

ERJ-L14UF75MU supports shunt measurement where low resistance and controlled drift matter. It is a thick film, surface-mount chip resistor specified at 75 mOhms with ±1% tolerance and a 0.333 W (1/3 W) power rating. The device is listed with Automotive AEC-Q200 and a current sense feature note. Temperature coefficient is ±100 ppm/°C, with an operating temperature range of -55°C to 125°C. Package is 1210 (3225 metric) with a 3.20 mm x 2.50 mm footprint and 0.70 mm max seated height, using 2 terminations for standard reflow assembly. Request a quote for ERJ-L14UF75MU
