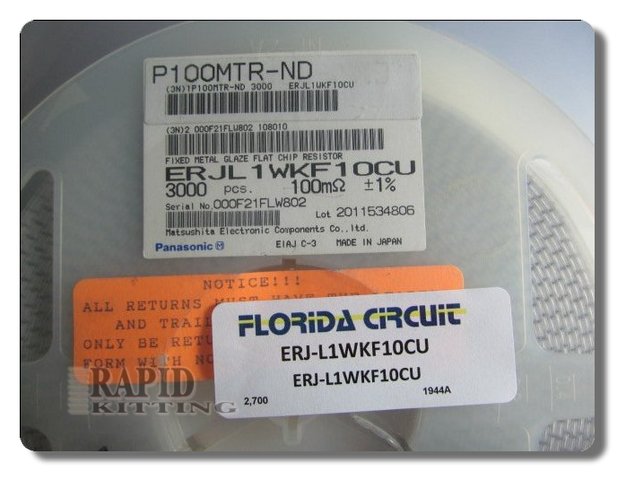

ERJ-L1WKF10CU 100 Milliohm Thick Film Current Sense Resistor In 2512

ERJ-L1WKF10CU is a surface-mount current sense resistor specified at 100mΩ with ±1% tolerance and a 1W power rating. Construction is thick film, with an Automotive AEC-Q200 feature note and current sense classification. Temperature coefficient is ±100ppm/°C. Operating temperature range is -55°C to 125°C. Package is 2512 (6332 metric) with a 6.40mm x 3.20mm outline and 1.20mm maximum seated height. It uses 2 terminations and is supplied in the ERJ-L1W series format. ERJ-L1WKF10CU is marked obsolete, which can be relevant for lifecycle tracking in controlled documentation sets. Key selection points include resistance value, tolerance, tempco, power rating, and package geometry. Request a quote for ERJ-L1WKF10CU.
