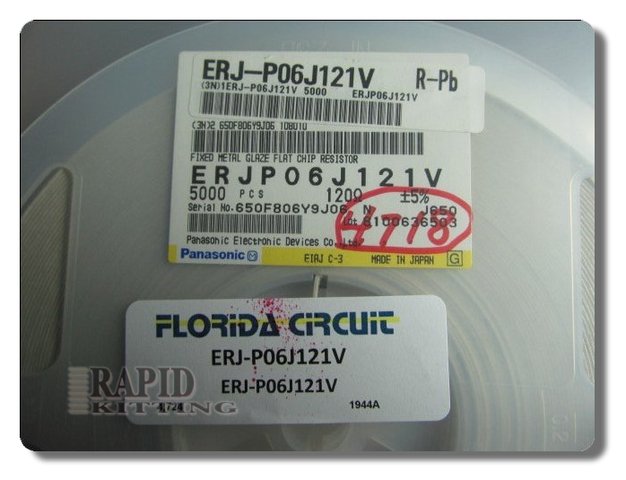

ERJ-P06J121V 120 Ohm Thick Film Chip Resistor In 0805 Size

ERJ-P06J121V is a surface-mount chip resistor specified at 120Ω with ±5% tolerance and 0.5W (1/2W) power rating. It uses thick film construction and includes pulse-withstanding capability with an Automotive AEC-Q200 feature note. Temperature coefficient is ±200ppm/°C. Operating temperature range is -55°C to 155°C. Package is 0805 (2012 metric) with body size 2.00mm x 1.25mm and 0.70mm maximum seated height. It has 2 terminations and is supplied as an active part in the ERJ-P06 series. ERJ-P06J121V is commonly chosen when 0805 geometry must carry 0.5W handling while keeping standard thick film drift control. Request A Quote For ERJ-P06J121V.
