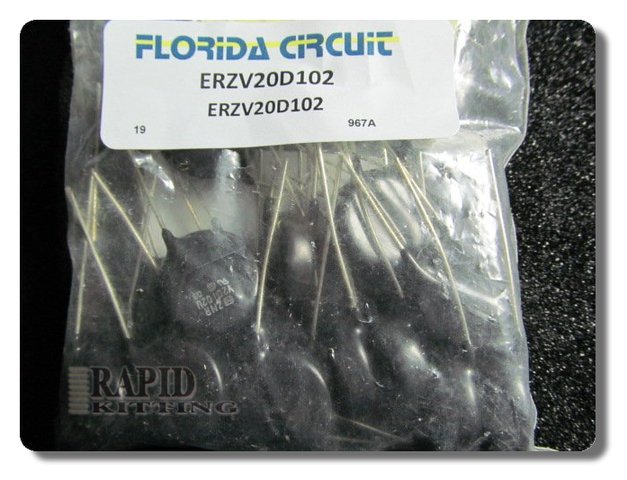

ERZV20D102 Metal Oxide Varistor With 1kV Varistor Voltage.

ERZV20D102 is a single-circuit MOV in the ZNR series, built as a through-hole disc device with a 22.50mm form factor. Maximum continuous ratings are 625VAC and 825VDC. Varistor voltage is specified from 900V to 1.1kV, with 1kV typical. Surge current rating is 7.5kA, and energy rating is 565J. Capacitance is 450pF at 1kHz. Operating temperature range is -40°C to 85°C (TA). ERZV20D102 is specified as a one-circuit, bulk-packaged varistor intended for high-energy surge paths. Request a quote for ERZV20D102.
