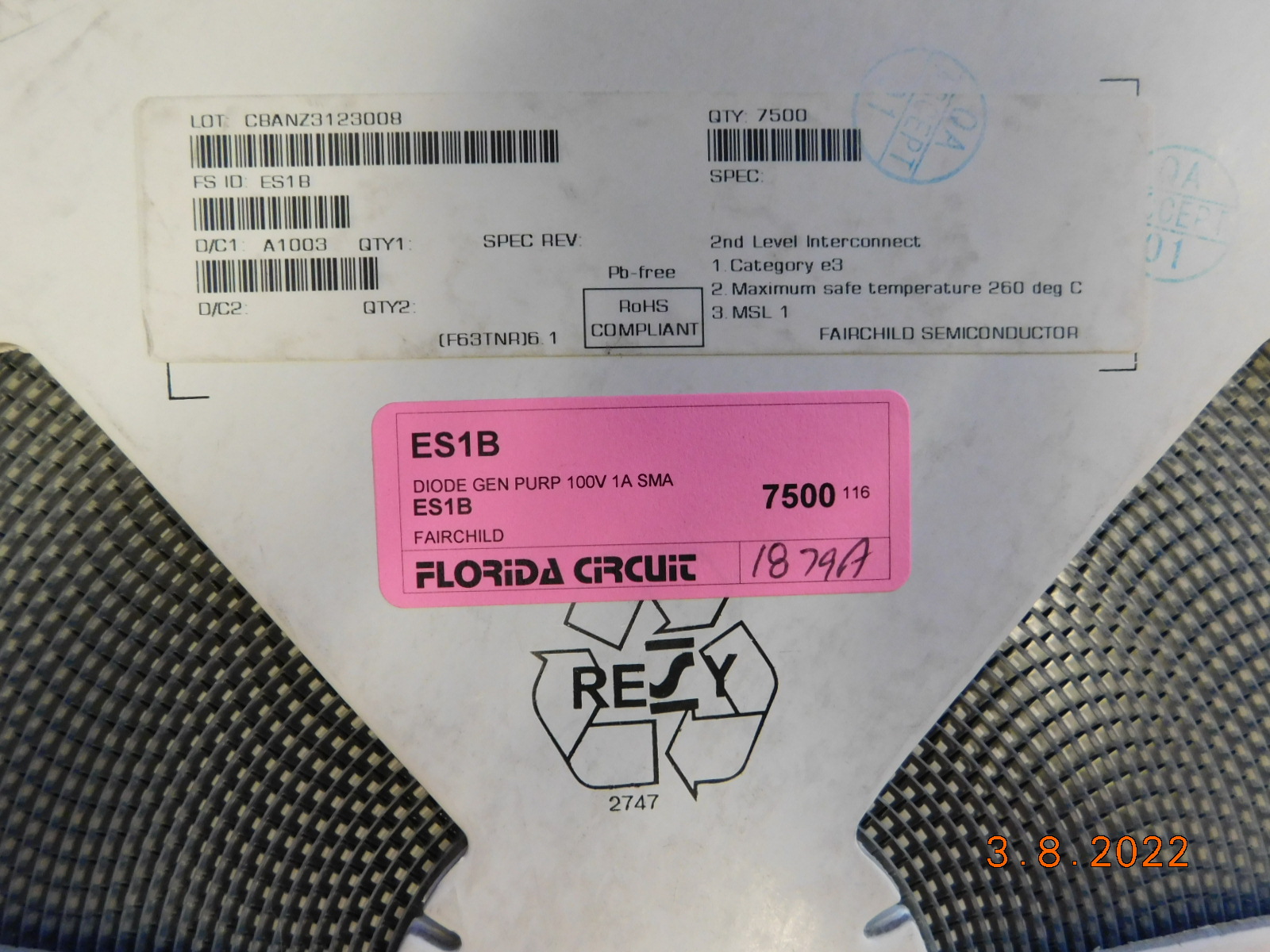

ES1B fast recovery rectifier diode in DO-214AC (SMA) package

ES1B is a single, standard rectifier diode with a fast recovery speed class in a DO-214AC (SMA) surface-mount outline. It is rated at 100 V DC reverse voltage (Vr max) and 1 A average rectified current (Io). Maximum forward voltage is 920 mV at 1 A. Reverse recovery time (trr) is specified at 15 ns, with speed class defined as fast recovery (≤ 500 ns, > 200 mA). Reverse leakage current is 5 µA at 100 V. Capacitance is 7 pF at 4 V and 1 MHz. Operating junction temperature range is -55°C to 150°C. ES1B is typically selected where low capacitance and fast recovery align with tighter switching noise and loss targets in compact power stages. Request a quote for ES1B.
