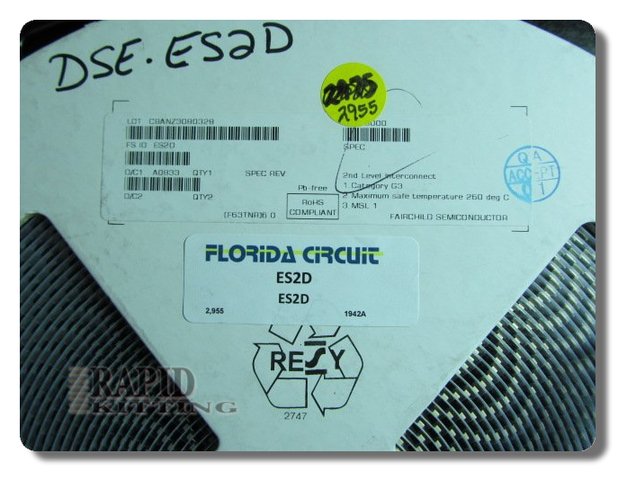

ES2D fast recovery rectifier diode in DO-214AA (SMB) package

ES2D is a single, standard rectifier diode with fast recovery performance in a surface-mount DO-214AA (SMB) outline. It is rated at 200 V DC reverse voltage (Vr max) and 2 A average rectified current (Io). Maximum forward voltage is 900 mV at 2 A. Speed classification is fast recovery (≤ 500 ns, > 200 mA), with a 20 ns reverse recovery time (trr). Reverse leakage current is 10 µA at 200 V. Junction capacitance is 18 pF at 4 V and 1 MHz. Operating junction temperature range is -50°C to 150°C. ES2D is commonly specified where rectification and recovery behavior both matter in compact power paths. Request a quote for ES2D.
