Compact Diode for High-Efficiency Switching

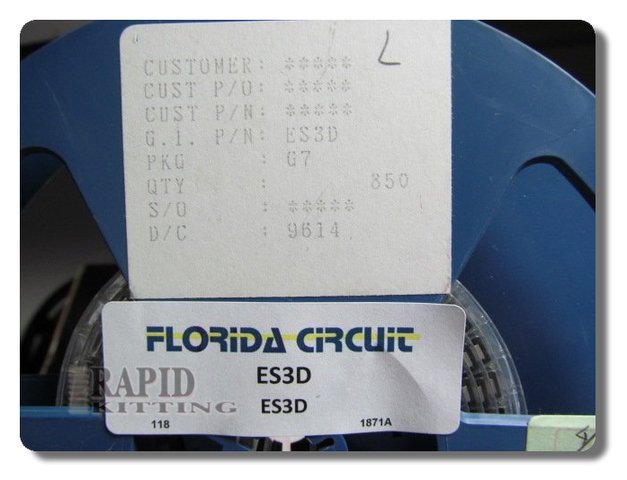

ES3D is a 200 V, 3 A single rectifier diode in a DO-214AB (SMC) surface-mount package. It is identified as a standard rectifier diode for general-purpose rectification. Forward voltage is 950 mV maximum at 3 A, with reverse leakage of 10 µA at 200 V. Junction capacitance is 45 pF at 4 V and 1 MHz. Reverse recovery time is 20 ns, and it is classified as fast recovery (≤ 500 ns at > 200 mA). Operating junction temperature range is -50°C to 150°C. The two-terminal SMC outline supports automated placement and reflow assembly. Request a quote for ES3D.
