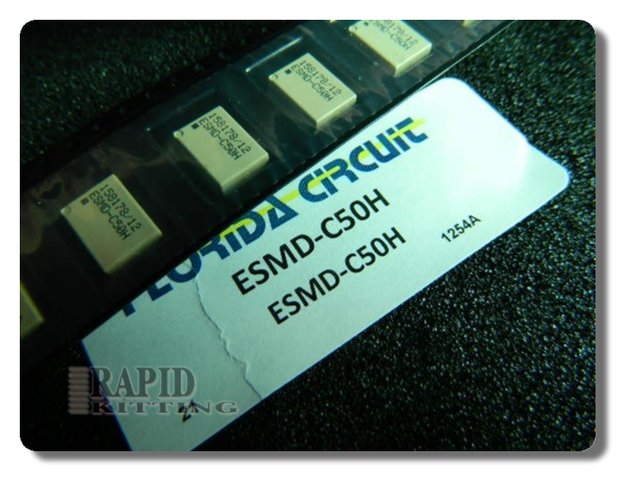

ESMD-C50H: wide-band & compact surface-mount mixer

Meet the ESMD-C50H. It’s a passive double-balanced mixer that runs from 80 MHz up to 2.5 GHz. It handles LO input of +17 dBm and RF output up to +14 dBm. Built with broad-band ferrite balun transformers and matched silicon Schottky diodes, it’s ideal for high dynamic-range receivers. It comes in a tiny SM-2 surface-mount package. Plus, its high 1 dB compression point makes it a solid choice for transmitter upconversion. It’s efficient, sturdy, and simple to place on your board. Want datasheets or pricing? Reach out now.
