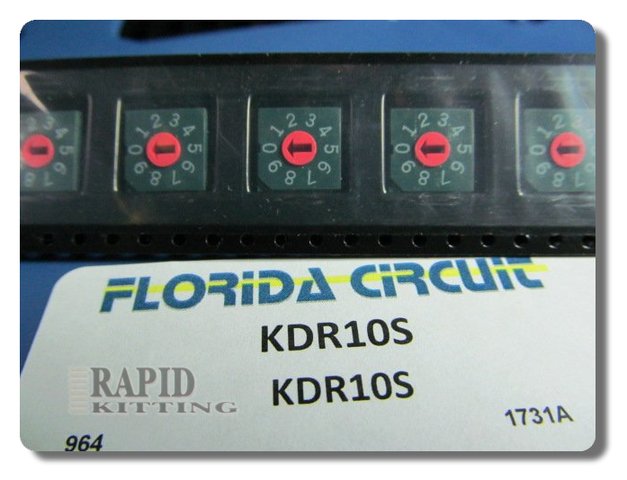

KDR10S: Compact, Reliable Vertical Rotary Code Switch

KDR10S is a compact rotary code switch designed for PCB applications where clear, manual setting matters. Its vertical layout saves board space while providing straightforward access for configuration. The BCD coding system supports simple position selection in electronic circuits. KDR10S uses screwdriver operation for controlled adjustment and individual switching for each position. Its plastic body and copper contacts provide a practical construction for electronic assemblies. The switch connects directly to the PCB through soldered terminals, helping create a secure connection during assembly. With a compact 10 mm length, 10 mm width, and 6 mm height, KDR10S fits neatly into space-conscious circuit designs. It uses a 2.54 × 5.08 mm contact spacing and supports a load limit of 0.4 VA at 20 V. KDR10S also operates across temperatures from -40°C to +85°C and meets RoHS requirements. Choose KDR10S for dependable PCB configuration and easy manual adjustment. Order KDR10S from Florida Circuit today.
