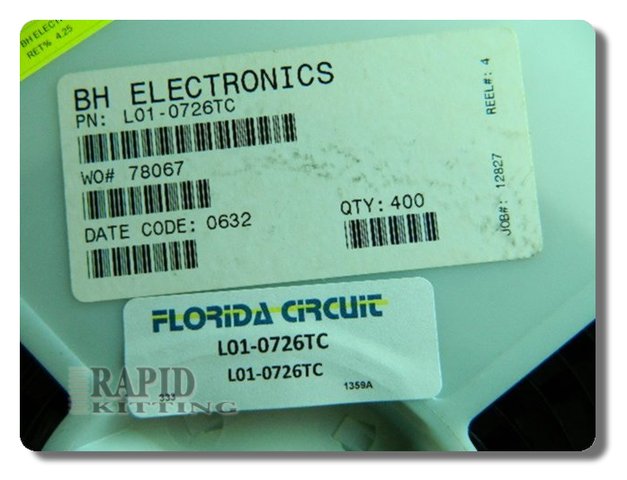

L01-0726TC Supports Compact, High-Current Inductive Designs

The L01-0726TC is a BH Electronics QTR-Pak transformer designed for compact power and signal applications. Its dual-inductor construction combines useful inductance with a space-conscious package, making it a practical choice when board area and current handling both matter. The L01-0726TC supports up to 4.75 A of current, giving designers a strong option for demanding circuit layouts.

Based on the L01-0726 series, the component provides 8.48 µH parallel inductance and 33.9 µH series inductance at 0 A DC. Its parallel and series DCR values are 0.019 Ω and 0.077 Ω, respectively. The design supports efficient current handling while keeping resistance low.

For replacement projects or new designs, the L01-0726TC can help maintain a compact, organized layout without adding separate magnetic components. It also fits designs that require dependable magnetic integration. Need the L01-0726TC for your application? Contact Florida Circuit today to confirm availability, pricing, and sourcing options for your required quantity.
