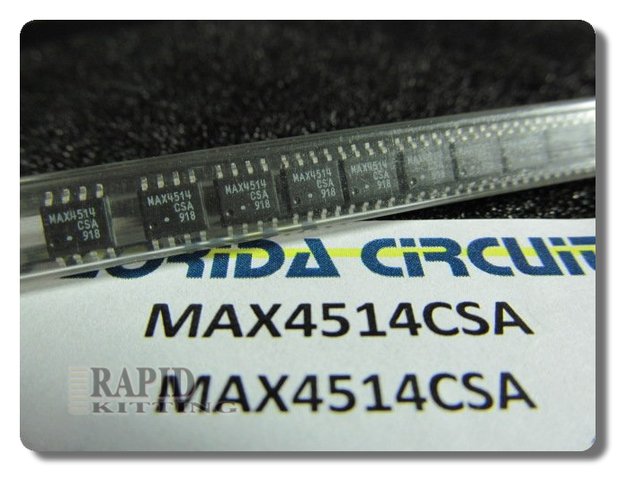

MAX4514CSA

The MAX4514CSA is an SPST analog switch specified for a low on-state resistance (about 20 Ω max) and broad supply compatibility from 2 V up to 12 V. Switch times of approximately 150 ns (on) and 100 ns (off) make it suitable for many general-purpose analog routing tasks where timing and signal integrity matter. Packaged in an 8-SOIC, the device is easy to place into board designs that require a single-pole switch with low RON and consistent performance. Typical applications include signal gating, audio paths, and test instrumentation where a reliable, modest-speed analog switch is needed. Its low leakage and small channel capacitance help maintain signal quality. Order the MAX4514CSA from Florida Circuit to add a dependable SPST analog switch to your design.
