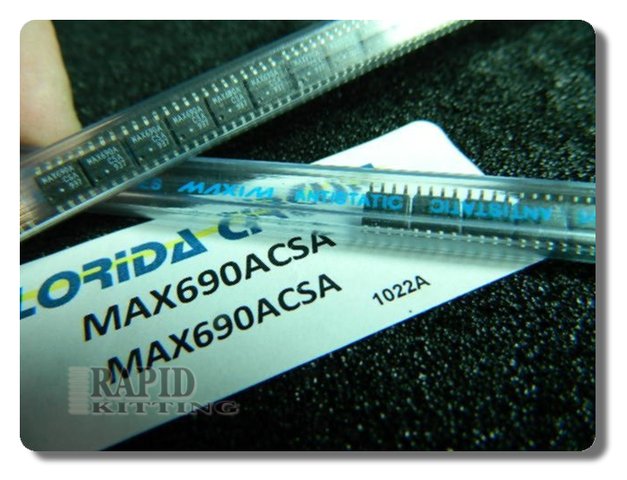

MAX690ACSA

The MAX690ACSA from Maxim Integrated is a microprocessor supervisory circuit designed to protect digital systems by monitoring power supply levels and generating reliable reset signals. The device features a 4.65V reset threshold, ensuring that microprocessors remain in reset until the supply voltage reaches a stable operating range. This supervisory IC integrates several functions commonly required in microprocessor systems, including power-supply monitoring, watchdog timer, and battery backup switching. By combining these functions into a single 8-SOIC package, the MAX690ACSA reduces board complexity and improves overall reliability. When the supply voltage falls below the threshold, the device immediately triggers a reset signal, protecting the processor from unstable operating conditions. The watchdog timer also monitors system activity and can initiate a reset if software fails to respond. The MAX690ACSA is widely used in embedded controllers, industrial automation systems, networking hardware, and computing applications where dependable power supervision is critical. Get yours now!
