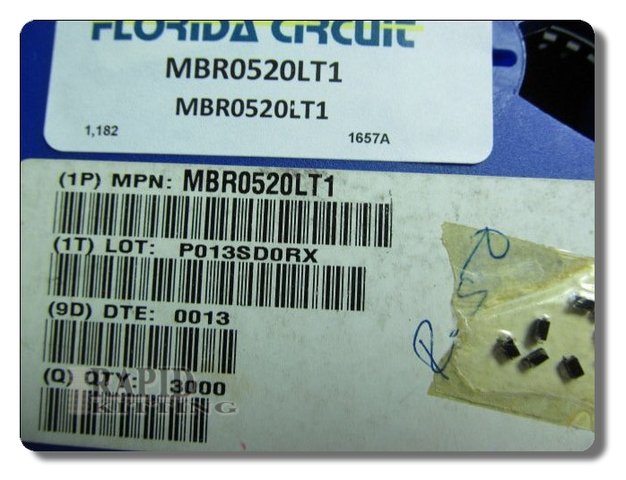

MBR0520LT1

The MBR0520LT1 is a 20V, 0.5A Schottky diode optimized for space-constrained applications that still demand low conduction losses. Its small SOD family packaging allows designers to save PCB real estate without sacrificing the speed and efficiency benefits of Schottky technology. Typical uses include reverse-polarity protection on sensitive inputs, low-voltage regulator outputs and small DC power rails in portable products. The diode’s low forward voltage reduces power dissipation, which can be critical in battery-powered circuits or thermally sensitive assemblies. When integrating this part, pay attention to layout, pad geometry and soldering profile to preserve thermal performance and solder joint reliability. Florida Circuit supplies verified parts and supporting datasheets so engineers can validate surge limits, thermal resistance and packaging data before production.
