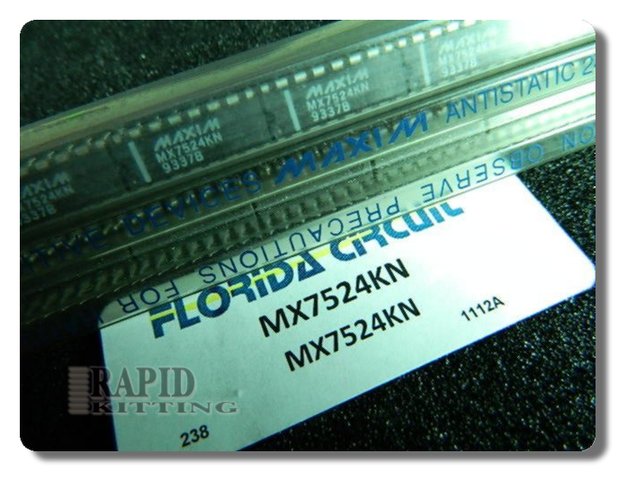

MX7524KN – Precise ±0.5 LSB INL, Low-Power CMOS DAC

The MX7524KN packs an 8-bit buffered multiplying DAC in a compact 16-pin PDIP. It uses an R-2R CMOS design that works right with microprocessors. Expect reliable ±0.5 LSB INL and ±1 LSB DNL, and a fast 400–500 ns settling. It runs on 5 V to 15 V analog and digital supplies. The interface feels familiar—like writing to RAM, using just CS and WR signals. It draws under 10 mW, so it stays cool and efficient. It fits automated test gear, function generators, and digital control systems. Want dependable analog output from digital input? Order MX7524KN now.
